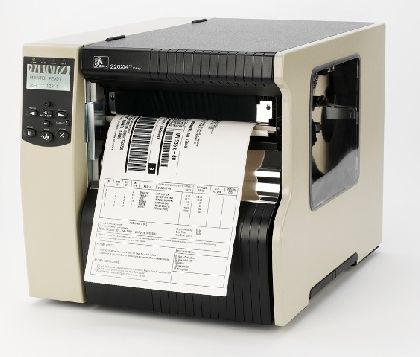

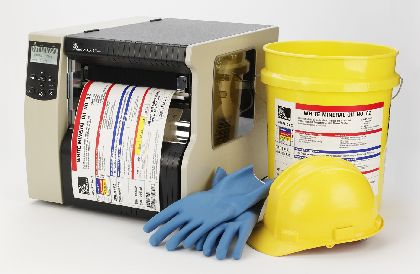

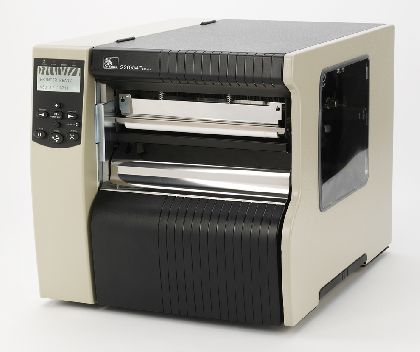

à¤Ã×èͧ¾ÔÁ¾ì ºÒÃìâ¤é´ #220XI4 INDUSTRIAL PRINTER Designed for fast printing of chemical drum and other wide-label applications, count on high-performance when you trust the rugged reliability of this thermal label printer. #ÃͧÃѺ¡ÒÃãªé§Ò¹ Used For:#Asset #Management #Cross #Docking #Inventory #Management #Lab #Sample #Tracking #Receiving/Shipping #Reverse #Logistics #Work-in-Process #Tracking #Compliance #Labeling #Information #Labels #Medical Record #Labeling #Order #Labeling #Prescription #Labeling #Quality #Control #Print STANDARD FEATURES Print methods: Thermal transfer or direct thermal Construction: 12-gauge steel frame Single 32 bit 133 Mhz RISC processor More Standard Features 16 MB SDRAM; 8 MB non-volatile Flash memory Automatic media/ribbon sensing capability Improved head test for element out Auto calibration Clear media side door for ease of supplies monitoring 300 unique darkness settings RS-232, Parallel ports USB 2.0 port Internal ZebraNet 10/100 PrintServer ZPL or ZPL II Programming Language XML enabled printing Mirror feature allows user-defined printer configurations to be retrieved from the network Create and design customizable printer LCD menus Large (240W x 128H pixels), multilingual, backlit, graphical LCD display Transmissive and reflective media sensors Multi-level Element Energy Equalizer (E3) for superior print quality Unicode™ - Compliant Intelligent printhead Printer Specifications Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory 16 MB SDRAM 8 MB Flash Print width: 8.5" (216mm) Print length: 150" (3810mm) using continuous media Print speed: Up to 10" per second (203 dpi) Media sensors: Reflective, Transmissive Media Characteristics Maximum label and liner width: 8.8" (224mm) Minimum label and liner width: 4.25" (108mm) Maximum label and liner length: 39" (991mm) non-continuous to 150" (3810mm) continuous media Maximum roll diameter: 8" (203mm) Core diameter 3.0" (76mm) Media thickness: .003" (.076mm) to .012" (.305mm) Media types: continuous, black mark, roll-fed, die-cut, fanfold Ribbon Characteristics Outside diameter: 3.2" (81.3mm) Standard length: 1476' (450m) or 984' (300m) Ratio: 2:1 and 3:1 media roll to ribbon ratios Ribbon width: 4.25" (108mm) to 8.6" (220mm) Ribbon setup: Ribbon wound ink side out ID Core: 1.0" (25.4 mm) Operating Characteristics Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (40° C) Thermal transfer DT: Operating temperature: 32° F (0° C) to 105° F (40° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 20 to 85% non-condensing relative humidity Storage humidity: 5% to 85% non-condensing relative humidity Electrical: Universal power supply with power factor connection 90-264 VAC; 48 - 62 Hz Agency approvals BSMI cTUVus CCC CE C-Tick EN55022 Class B EN55024 EN61000-3-2,3 FCC Class B GOST-R ICES-003 Class B IEC 60950-1 / EN60950 KCC NOM S Mark STB UkrSEPRO VCCI ZIK Physical Characteristics Width: 15.81" (401.6mm) Height: 15.5" (393.7 mm) Depth: 20.38" (517.5 mm) Weight: 72 lbs (32.7 kg) Related Products Options ZebraNet Wireless Plus Print Server ZebraNet Internal Wireless Plus (Discontinued) Internal IPv6 Print Server IBM Twinax interface IBM Coax interface Rewind with peel Cutter Bi-fold media door with clear panel Media supply spindle for 40 mm cores 64MB Flash Memory with ZPL II and XML Scalable and international fonts Applicator interface ZebraDesigner ZebraDesigner Pro ZebraDesigner for XML ZebraNet Bridge Enterprise Connector ZebraNet b/g Print Server Communication and Interface Capabilities USB 2.0 port (12 Mbits per second) RS-232C/422/485 multi-drop (optional adaptor) High-speed, bi-directional, IEEE 1284 parallel interface ZebraNet Wireless Plus Print Server ZebraNet 10/100 Print Server IBM Twinax interface IBM Coax interface Applicator interface IPV6 Print Server ZebraNet b/g Print Server Programming Languages Core programming languages: XML, ZPL, ZPL II barcodes/Symbologies Linear Codabar Code 11 Code 128 with subsets A/B/C and UCC case codes Code 39 Code 93 EAN-13 EAN-8 ISBT-128 Industrial 2-of-5 Interleaved 2-of-5 Logmars MSI Planet Code Plessey Postnet Standard 2-of-5 UPC and EAN 2 or 5 digit extensions UPC-A UPC-E 2-dimensiona lAztec Codablock Code 49 Data Matrix MaxiCode MicroPDF PDF417 QR Code QR Code (requires Asian version printer) RSS / GS1 DataBar family (12 barcodes) TLC 39 Fonts and Graphics Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent Smooth scalable font (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent IBM® Code Page 850 International Characters #ʹ㨵ԴµèÍä´é·Õè ºÃÔÉÑ· ºÒÃìâ¤é´ ÃÕà·Å â«ÅÙªÑè¹ «ÔÊàµçÁÊì ¨Ó¡Ñ´ http://www.barcoderetail.co.th/home/index.php â·Ã.02-5392650 â·Ã. 081-8890644 mail:poscsretail@gmail.com LINE ID :@ucw2478b LINE ID :barcodepos
