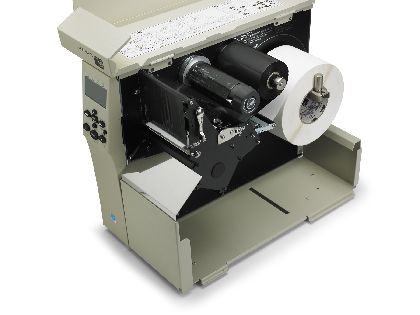

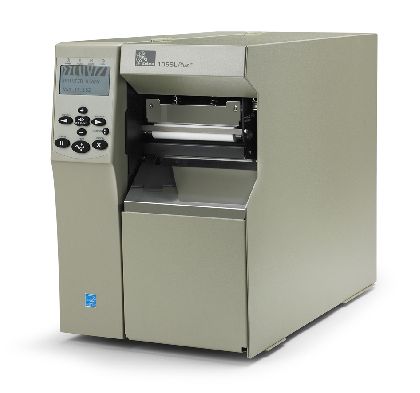

à¤Ã×èͧ¾ÔÁ¾ì ºÒÃìâ¤é´ 105SLPLUS INDUSTRIAL PRINTERS When economical and reliable high-performance printing is required, the rugged 105SLPlus is the right choice. Building on the legacy of Zebra's proven high performance printer design, the 105SLPlus provides high speed printing, a multitude of connectivity options, and all-metal construction to withstand tough use. #ÃͧÃѺ¡ÒÃãªé§Ò¹ Used For:#Asset #Management #Cross #Docking #Inventory #Management #Lab #Sample #Tracking #Receiving/Shipping #Reverse #Logistics #Work-in-Process #Tracking #Compliance #Labeling #Information #Labels #Medical Record #Labeling #Order #Labeling #Prescription #Labeling #Quality #Control #Print STANDARD FEATURES Print Methods: Direct thermal and thermal transfer Resolution: 203 dpi or 300 dpi More Standard Features Full-function front panel and large multilingual back-lit LCD display — with user-programmable password protection Thin film printhead with Element Energy Equalizer™ (E3™) for superior print quality 8 MB Flash memory—including 2 MB user-available non-volatile memory storage for downloadable objects Serial RS-232 and bi-directional parallel ports—with auto detect USB 2.0 Dual media sensors—transmissive and reflective, selectable through software or front panel Internal ZebraNet 10/100 Print Server—supports 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks. Printer Specifications Resolution: 203 dpi (8 dots/mm) 300 dpi (12 dots/mm) Memory: Standard: 16 MB SDRAM; 8 MB Flash Print width: 4.09" (104 mm) Print length: 203 dpi: 105"/3810 mm (with standard memory) 300 dpi (optional): 100"/2540mm (with standard memory) Print speed: 203 dpi: 12"/305 mm per second 300 dpi: 10"/254 mm per second Media Characteristics Media types: continuous, die-cut, or black mark, notch Media thickness (label and liner): 0.003"/0.076 mm to 0.012"/0.305mm Maximum media roll size: 8.0"/203 mm O.D on a 3"/76 mm I.D. core Media width (label and liner): 0.79"/20 mm to 4.5"/114 mm Maximum non-continuous label length: 39"/991 mm Ribbon Characteristics Standard Lengths: 1476'/450 m or 984/300 m Provides 2:1 and 3:1 media roll to ribbon ratios Maximum ribbon roll size: 3.2'/81.3 mm OD on a 1.0'/25.4 mm I.D. core Ribbon wound coated-side out Ribbon width: 0.79'/20 mm to 4.33'/110 mm Operating Characteristics Environmental Operating environment: Thermal transfer = 40° F/5° C to 105° F/40° C Direct thermal = 32° F/0° C to 105° F/40° C 20% to 85% non-condensing relative humidity Storage/Transportation environment: – 40° F/-40° C to 140° F/60° C 5% to 85% non-condensing relative humidity Electrical Universal power supply with power-factor correction 100-240 VAC, 47–63 Hz Agency Approvals IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, and UkrSEPRO Physical Characteristics Width: 10.31" (261.9 mm) Height: 15.5" (393.7 mm) Depth: 20.38" (517.5 mm) Weight: 50 lbs (22.7 kg) Related Products Options 300 dpi Cutter and catch tray Media rewind spindle — internal finished roll rewind or passive-peel with liner take-up spindle 64 MB On-Board Linear Flash Memory (factory installed only) Scalable and international fonts Communication and Interface Capabilities ZebraNet® b/g Print Server (internal) Programming Languages Core programming languages: XML,ZPL I, ZPL II barcodes/Symbologies Barcode ratios: 2:1, 7:3, 5:2, and 3:1 Linear barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2-dimensional barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec Fonts and Graphics Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent Smooth scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent IBM Code Page 850 International Characters #ʹ㨵ԴµèÍä´é·Õè ºÃÔÉÑ· ºÒÃìâ¤é´ ÃÕà·Å â«ÅÙªÑè¹ «ÔÊàµçÁÊì ¨Ó¡Ñ´ http://www.barcoderetail.co.th/home/index.php â·Ã.02-5392650 â·Ã. 081-8890644 mail:poscsretail@gmail.com LINE ID :@ucw2478b LINE ID :barcodepos
