DataMan 9500 Series Features

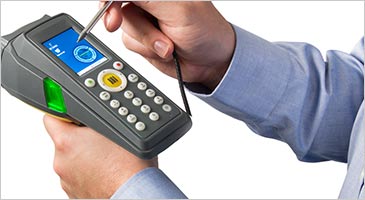

The DataMan® 9500 Series mobile computer was specifically designed for the rugged conditions of the factory floor yet is small and lightweight enough to fit comfortably in the hand with easy-to-use ergonomic controls.

Get a Product Demo
Unmatched Barcode Reading Performance

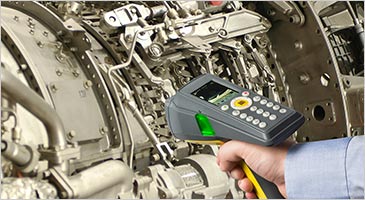

Featuring proprietary Cognex barcode reading technology, 1DMax+™ and 2DMax+, the DataMan 9500 series delivers unmatched barcode reading performance of rough 1-D and 2-D codes, on a wide range of print methods or surfaces.

2DMax™ technology has set the industry standard for reading the most challenging DPM Data Matrix codes no matter the marking type, surface or code degradation.

1DMax™ technology is optimized for omnidirectional 1-D linear barcode reading and can handle extreme printing and positional variation.
UltraLight® integrated illumination provides different types of lighting techniques used for reading DPM codes.
Liquid lens variable focus technology enables a single reader to decode DPM marks close up, or barcodes from a distance.
Achieving the Highest Read Rates Technote
Wi-Fi Communications
Connect directly to factory networks via 802.11 a/b/g protocols on 2.4GHz and 5GHz bands for real-time wireless communication.

Application Development

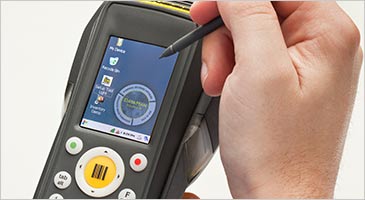

Setup Tool LITE makes DPM setup easier by providing direct access to reader functions such as image display, UltraLight parameters and focus settings. The DataMan 9500 also has Microsoft® Internet Explorer® and onboard keyboard emulation for running a web browser and HTML form-based applications. The DataMan 9500 has the Microsoft Windows® CE 6.0 Operating System for running custom applications on the QVGA interface. The DataMan 9500 Developer Toolset provides everything you’ll need to develop custom programs on this operating system. Download the datasheet for more details on the developer toolset.


DataMan 9500 Series Specifications
DataMan 9500
1-D & Stacked Barcodes Yes
2-D Codes Yes
Algorithms 1DMax+ 2DMax+
Resolution 1280 x 1024 high resolution sensor
Status Outputs LED, beeper and vibration
Aimer Laser, Class II
Lens Options Variable focus liquid lens (working distances from 0 to 500mm)
Lighting Integrated UltraLight (bright, dark and diffuse)
Communication Wi-Fi 802.11 a/b/g; 2.4 GHz and 5 GHz Encryption Standards: WEP, WPA, WPA2
Dimensions 175 mm x 185 mm x 86 mm
Drop Resistance 25 drops from 2 m

DataMan 9500 Series Barcode Reader Symbologies
TECHNICAL SUPPORT
1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, GS1 DataBar, PDF417, Micro PDF417
2-D: Data Matrix, QR Code and MicroQR Code.
