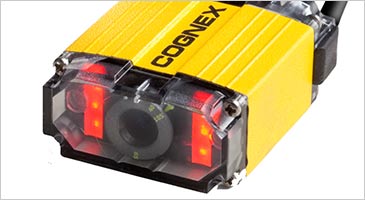

DataMan 100/200 Series Features With industry-leading barcode reading software performance and a small, industrial-rated housing, the DataMan 100/200 series provides high performance for 1-D and 2-D applications. These fixed-position barcode readers are available in multiple models to best match your application Unmatched Barcode Reading Performance With proprietary 1DMax for the best-in-class reading of 1-D barcodes and 2DMax+™ for the ability to read even the most difficult 2-D matrix codes, the DataMan 100/200 series delivers unmatched read rates Industrial Connectivity The DataMan 200 series offers Ethernet connectivity for real-time tracking, image download, data transfer and effortless plant integration. DataMan 100 series offers RS-232 and USB communications options. DataMan 100 QL DataMan 100 Q DataMan 100 X DataMan 200 QL DataMan 200 Q DataMan 200 X 1-D & Stacked Barcodes Yes 1-D Omnidirectional Barcodes Yes 2-D Codes No Yes No Yes Algorithms 1DMax 1DMax, IDQuick 1DMax, IDQuick, 2DMax+ 1DMax 1DMax, IDQuick 1DMax, IDQuick, 2DMax+ Resolution 752 x 480 global shutter Acquisition Max 60 fps Decode Rate Max 45/sec Lens Options 3-position (40/65/105mm) adjustable large aperture, SHD (super high density), C-Mount 3-position (40/65/105mm) adjustable, variable focus liquid lens large aperture, C-Mount Lighting Integrated bright field Communication RS-232 and USB Ethernet and RS-232 Dimensions 55mm x 42mm x 22mm 64mm x 42mm x 21mm Protection IP65 DataMan 100/200 Series Symbologies 1-D: 1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, GS1 DataBar 2-D: Data Matrix, QR Code and MicroQR Code. Optional: VeriCode® Composite: GS1 (CC-A, CC-B), PDF 417, MicroPDF
