DataMan 8600 Series Series: DPM, 2-D and 1-D Handheld Barcode Readers
DPM, 2-D and 1-D Handheld Barcode Readers
Supercharged Direct Part Mark reading performance for the most challenging barcodes

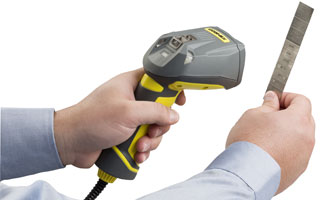

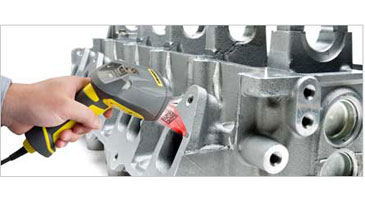

DataMan® 8600 series image-based ID readers provide the world's most advanced barcode reading technology for decoding Direct Part Mark (DPM), 2-D and 1-D codes of varying sizes, quality and marking or printing methods. These handheld DPM barcode readers are designed for the harshest factory floor environments. Equipped with an advanced liquid lens imaging system and patented UltraLight® flexible lighting technology, the DataMan 8600 series of barcode readers decode the most challenging DPM barcodes on the widest variety of surfaces. And, the modular communication design supports Ethernet with Industrial Protocols as well as corded and wireless modules to ensure the DataMan 8600 series of readers are ready to meet your application communication requirements.


Most Powerful Direct Part Mark Handheld Barcode Reader
The most powerful Cognex algorithms, 2DMax®+ and 1DMax+ with Hotbars®, enable the DataMan 8600 series image-based readers to decode the most challenging DPM barcodes in the most demanding industrial conditions.


220 mm x 115 mm x 85 mm

Weight

326 g

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 60°C (-40°F to 140°F)

Maximum Humidity

95% (non-condensing)

Material

Polycarbonate housing with overmold

Imager

1280 x 1024 High Resolution Sensor

Aiming

Laser Aimer, Class 1 and Class 2

Status Outputs

LED, Beeper and Vibration


Communications

Serial Module: RS-232, USB
Ethernet Module: TCP/IP, FTP, Industrial Protocols: EtherNet/IP, PROFINET, MC Protocol, Modbus TCP

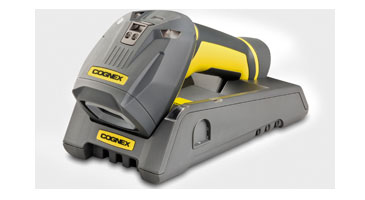

Intelligent Base Station: RS-232, USB, Ethernet, Industrial Protocols
Bluetooth module communicates to intelligent base station



Symbologies

1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, POSTNET, PLANET Code, GS1 Databar, IMB, Postal
2-D: Data Matrix, QR, MicroQR, PDF417, MaxiCode, Aztec, Micro PDF417


Lighting

UltraLight integrated bright field, dark field, diffuse
illumination

Optics

Variable focus liquid lens (0 to over 500 mm depending on code element size)



Power Supply Requirements

DataMan 8600 with Serial/USB: 5V - 6V DC, 5.0 W maximum LPS or NEC Class 2 power supply
DataMan 8600 with Ethernet: PoE Class 2 power supply DataMan 8600 with Bluetooth: 3.7V, 3100 mAh Li-ion battery
DataMan Intelligent Base Station: 24V, 13W maximum LPS or NEC Class 2 power supply

Environmental

Compliant with RoHS directive 2002/98/EEC



Regulatory

Electrical: CE, CSA, UL 60950, EN/IEC 60950-1
EMI/RFI : FCC Part 15, CE (EMC and R&TTE Directives), ICES-003, RSS-210 Issue 8, KCC

Data Validation

US DoD UID Guidelines, GS-1, ISO15434 and ISO15418

Operating System

Microsoft® Windows® XP, Windows 7 and Windows

DataMan 8600 Series Barcode Reader Symbologies
DataMan 8600 Series

1-D: UPC/EAN/JAN, Codabar, Interleaved 2 of 5, Code 39, Code 128, Code 93, Pharmacode, POSTNET, PLANET Code, GS1 DataBar, IMB, Postal
2-D: Data Matrix, QR, MicroQR, PDF 417, MaxiCode, Aztec, MicroPDF417
