DataMan 2-D Data Matrix Verifiers Features
In addition to breakthrough code reading, there are DataMan® products for every step of the direct part marking (DPM) process, including quality verification, and data validation. Easy-to-use and reliable DataMan products enable quality control solutions for applications that require the highest read rates for 2-D Data Matrix codes—critical to product traceability.

Fully integrated designs: Lighting, camera, positioning and software all in one package.
Compliant results: Meet industry 2-D code quality standards.
Ease-of-use: Two model options—handheld or fixed-mount—provide maximum flexibility.

DataMan Verifiers Models and Specs

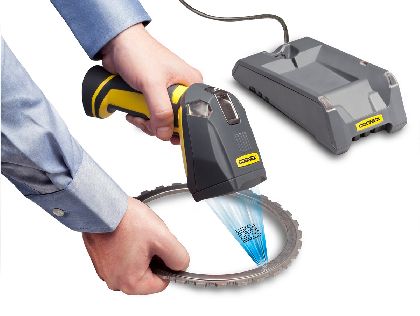

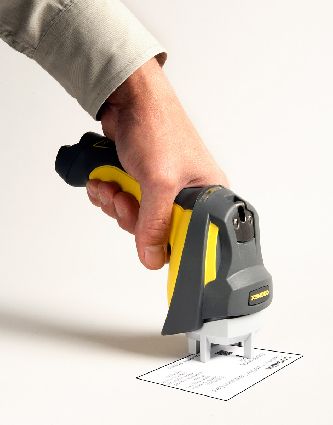

DataMan Handheld Verifiers
DataMan 8600V series verifiers deliver a portable and compliant handheld verifier with superior ease of use and cost effectiveness. This enables manufacturers to perform verification on the factory floor, rather than at a remote or fixed verification station.

Integrated Lighting: 30 degree dark field lighting is ideal for verifying nameplates and other flat parts.
Mechanical Standoff: Ensures uniform illumination and a fixed working distance.
Reliable: Compliant results to the AIM DPM Quality Guideline 2006-1.

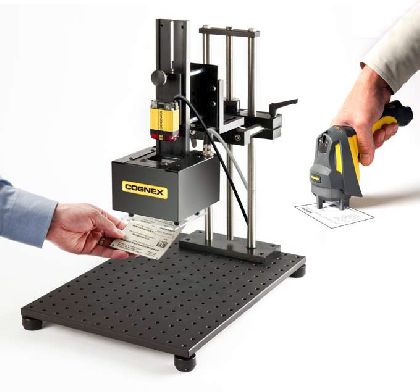

DataMan Fixed-mount Verifiers
The Cognex DataMan 100 Verification System provides you with a flexible solution to verify the widest range of parts that conforms to the ISO 15426-2 verification system standards.

Flexible Mounting: Mount to a fixed location or used the optional adjustable stand.
Flexible Lighting: Adjustable 30/45 degree low angle lighting and 90 degree DOAL lighting for the widest range of parts and mark types.
Flexible Optics: Verify codes with cell sizes as small as 7.5 mils. to overall code sizes of 1 inch or 25mm.
ISO 15426-2 Compliance: Comply with the results of ‘Judge’ certified cards from GS1.
Capable: Compliant results for the AIM DPM Quality Guideline 2006-1, ISO 15415 and AS 9132.
Easy Set Up: Control box with integrated I/O, power and lighting quick connect cable
