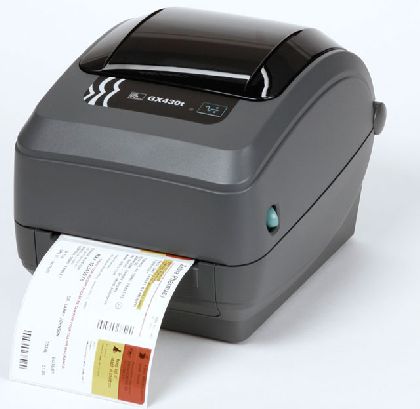

à¤Ã×èͧ¾ÔÁ¾ìºÒÃìâ¤é´ Zebra GX430t thermal transfer printer Specs Resolution 300 dpi (12 dots/mm) Wid The best-in-class GX430t thermal transfer printer offers the easiest ribbon loading, 300 dpi, and a wide range of features in a compact footprint. How to Buy Quick Specs Resolution 300 dpi (12 dots/mm) Width 4.09" (104 mm) Speed 4" (102 mm)/sec Ideal for Standard Features Print speed: up to 4" (102 mm) per second Print method: direct thermal/thermal transfer EPL and ZPL programming languages standard More Standard Features OpenACCESS design for easy media loading Quick and easy ribbon loading system Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing Printer Specifications Resolution: 300 dpi (12 dots/mm) Memory Standard: 8 MB SDRAM (3 MB available to user); 4 MB Flash (1.5 MB available to user) Optional: 64 MB Flash (68 MB total) with real time clock (65.5 MB available to user) Print width: 4.09" (104 mm) Print length: 39" (991 mm) Print speed: 4" (102 mm)/sec Media sensors: Reflective, Transmissive Media Characteristics Maximum label and liner width: 4.25" (108 mm) Minimum label and liner width: 0.75" (19 mm) Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm) Maximum roll diameter: 5" (127 mm) Core diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (38.1) Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm) Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock Ribbon Characteristics Outside diameter: 1.34" (34 mm) Standard length: 244' (74 m) Ratio: 1:1 Ribbon width Recommended to be at least as wide as media 1.33" (33.8 mm) to 4.3" (110 mm) ID Core: 0.5" (12.7 mm) Operating Characteristics Operating temperature TT: Operating temperature: 40° F (5° C) to 105° F (41° C) Thermal transfer DT: Operating temperature: 40° F (5° C) to 105° F (41° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 10-90% non-condensing Storage humidity: 5-95% non-condensing Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz Agency approvals FCC Part 15 Subpart 15 VCCI C-Tick EN55022 Class-B EN6100-3-2 EN6100-3-3 EN55024 CCC CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4 TUV NRTL IRAM NOM AAMI Physical Characteristics Width: 7.6" (194 mm) Height: 7.5" (191 mm) Depth: 10" (254 mm) Weight: 4.6 lbs (2.1 kg) Shipping weight: 9.1 lbs (4.1 kg) Orientation Center Related Products Options 64 MB Flash memory with real time clock (68 MB total) 10/100 internal Ethernet connectivity 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port) Bluetooth wireless connectivity with LCD display (replaces Parallel port) Adjustable media sensor Cutter for various media types Dispenser - label peel and present with present sensor Asian font kits Communication and Interface Capabilities Auto-sensing Serial RS-232 (DB-9) USB V1.1, bi-directional Centronics Parallel Optional: 10/100 internal Etherenet (replaces Parallel port) Optional: 802.11 b/g wireless radio connectivity with LCD display (replaces Parallel port) Optional: Bluetooth wireless connectivity with LCD display (replaces Parallel port) Programming Languages Core programming languages: EPL2, ZPL I/ZPL II Bar Codes/Symbologies Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 EAN-8 and EAN-13 with 2 or 5 digit extensions German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code Fonts and Graphics 16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
