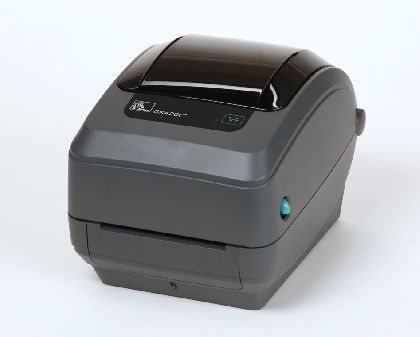

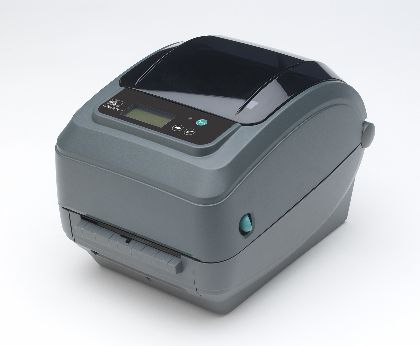

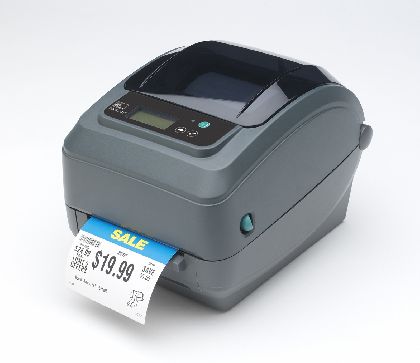

à¤Ã×èͧ¾ÔÁ¾ìºÒÃìâ¤é´ Zebra GX420t thermal transfer printer Specs Resolution 203 dpi (8 dots/mm) Widt The best-in-class GX420t thermal transfer printer offers many features, the easiest ribbon loading, speed, and performance in a compact footprint. How to Buy Quick Specs Resolution 203 dpi (8 dots/mm) Width 4.09" (104 mm) Speed 6" (152 mm)/sec Standard Features Print speed: up to 5" (127 mm) per second Print method: direct thermal/thermal transfer EPL and ZPL programming languages standard More Standard Features OpenACCESS design for easy media loading Quick and easy ribbon loading system Dual-wall reinforced plastic construction 32 bit RISC processor XML-enabled printing Printer Specifications Resolution: 203 dpi (8 dots/mm) Memory: Standard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user) Print width: 4.09" (104 mm) Print length: 39" (991 mm) Print speed: 5" (127 mm)/sec Media sensors: Reflective, Transmissive Media Characteristics Maximum label and liner width: 4.25" (108 mm) Minimum label and liner width: 0.75" (19 mm) Maximum label and liner length: 0.38" (9.7 mm) to 39" (991 mm) Maximum roll diameter: 5" (127 mm) Core diameter: 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm) Media thickness: 0.003" (0.08 mm) to 0.0075" (0.20 mm) Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock Ribbon Characteristics Outside diameter: 1.34" (34 mm) Standard length: 244' (74 m) Ratio: 1:1 Ribbon width Recommended to be at least as wide as media 1.33" (33.8 mm) to 4.3" (110 mm) ID Core: 0.5" (12.7 mm) Operating Characteristics Operating temperatureTT: Operating temperature: 40° F (5° C) to 105° F (41° C) Thermal transfer DT: Operating temperature: 40° F (5° C) to 105° F (41° C) Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C) Operating humidity: 10-90% non-condensing Storage humidity: 5-95% non-condensing Electrical: Auto-detecable (PFC Compliant) 100-240 VAC, 50-60 Hz Agency approvals FCC Part 15 Subpart 15 VCCI C-Tick EN55022 Class-B EN6100-3-2 EN6100-3-3 EN55024 CCC CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4 TUV NRTL IRAM NOM AAMI Physical Characteristics Width: 7.6" (194 mm) Height: 7.5" (191 mm) Depth: 10" (254 mm) Weight: 4.6 lbs (2.1 kg) Shipping weight: 9.1 lbs (4.1 kg) Orientation Center Related Products Options 10/100 internal Ethernet connectivity Dispenser - label peel and present with present sensor Asian font sets Communication and Interface Capabilities Auto-sensing Serial RS-232 (DB-9) USB V1.1, bi-directional Centronics Parallel 10/100 internal Ethernet (replaces parallel port) Programming Languages Core programming languages: EPL2, ZPL I/ZPL II Bar Codes/Symbologies Linear Codabar Code 11 Code 128 Code 128 with subsets A/B/C Code 39 Code 93 EAN-13 EAN-14 EAN-8 EAN-8 and EAN-13 with 2 or 5 digit extensions German Post Code Industrial 2-of-5 Interleaved 2-of-5 Japanese Postnet Logmars MSI MSI-3 Plessey Postnet RSS (reduced space symbology) Standard 2-of-5 UCC/EAN-128 UPC and EAN 2 or 5 digit extensions UPC-A UPC-A and UPC-E with 2 or 5 digit extensions UPC-A and UPC-E with EAN 2 or 5 digit extensions UPC-E 2-dimensional Aztec Codablock Code 49 Data Matrix MacroPDF417 MaxiCode MicroPDF417 PDF417 QR Code RSS / GS1 DataBar family (12 barcodes) Fonts and Graphics 16 resident expandable ZPL II bitmap fonts One resident scalable ZPL font Five resident expandable EPL2 bitmap fonts Supports user-defined fonts and graphics - including customer logos
