Multiconductors Unshielded
¢éÍ¡Ó˹´ ¤Ø³ÅѡɳТͧÊÔ¹¤éÒ (Specification):
UL subject 13 type CL2, CL3
NEC articles 725-38 (b) (1)
105?C, 300, 600 Volt

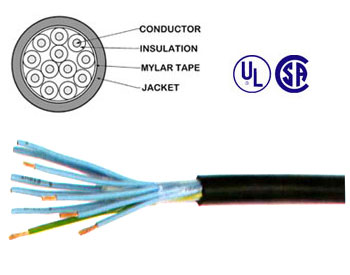

Conductor:  Fine stranded concentric bare copper
Insulation:  105?C PVC optional PE, XLPE, PP
Jacket:       Black sunlight resistant PVC
Application: For process control and instrumentation. Passes UL type CL2, CL3 vertical tray flame test.
Installed in cable trays, raceways, conduit or aerial.
Product Description
22 AWG, 0.35 sqmm. DCR 55.4 ?/km
Standard UL type CL2, CL3, CSA type AWM FT4
No/mm.: 13/0.18
AWG: 22
No.of cores: 9
Insulation thickness: 0.38
Jacket material: PVC
Nominal OD. (mm): 8.1
Jacket color: Black
