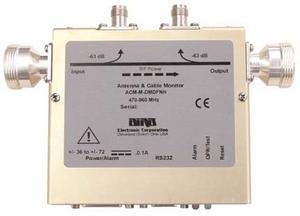

Bird ACM Series Antenna and Cable Monitor
Features
 1. Worldwide systems include Tetra, Cellular and PCS with digital or analog modulation.
Other applications include 3G, AMPS, Broadcast, CDMA, CDMA 2000, DCS, EDGE,
Government, GPRS, GSM, iDEN, Industrial, NPSPAC, Microwave, Military, Paging, Public
Safety, Rail, SMR, TDMA, Tetrapol, Trunking, UHF, Utilities, VHF, W-CDMA and WLL
 2. Models available from 136-225 MHz, 225-520 MHz, 470-960 MHz, 960-2400 MHz
 3. Accurately monitors your antenna and cable system VSWR levels
 4. ocal or Remote operation via 7005A970 PC Tool Software (Optional Accessory) -Please
Contact Factory
Details
Bird's Antenna & Cable Monitor is the solution for monitoring your transmission antenna
systems. Service providers and self maintained end user's can rely on this monitor and
alarm to keep their critical sites up and running. Designed to detect antenna and cable
faults that transmitter-internal VSWR monitors may not detect, it also provides accurate in-
line power measurement functionality.
Product Specifications:
Accuracy: ?5% of reading, ?1 count at calibration frequencies
Alarm/Power Connector: 15-pin Female "D" connector
Alarms: Alarm Set Point: 1.3, 1.4, 1.5, 1.6, 1.7, 1.8 to 1
Altitude: Up to 3000 meters above sea level
Connector: Monitor Ports: Female N, TNC or BNC
Contact Rating: 100 VDC @ 0.5 A
Coupling: Monitor Ports: -63 dB approx., Subject to changes in full-scale power
Dimensions: 4.75" (121mm) wide, (7.55" (192mm) with connectors), 4.2" (107mm) high, 1.06"
(27mm) deep
Directivity: 30 dB, 136-960 MHz ; 26 dB, 960-2400 MHz
EMC: European Standard EN 61326-1:1997 + Addendums A1: 1998 and A2:2001 - Electrical
equip. for measurement, control and laboratory use
Environment: Thruline? sensor for direct insertion in 50-Ohm line
Frequency Range: 136-225 MHz, 225-520 MHz, 470-960 MHz, 960-2400 MHz
Frequency Response: (band endpoints): 136-225 MHz, ? 10%; 225-520 MHz, ?8%; 470-960
MHz, ?5%; 960-2400 MHz, ?5%
Humidity: 0 to 95% maximum (non-condensing)
Insertion Loss: 0.1 dB, 136-960 MHz; 0.15 dB, 960-2400 MHz
Interface Port: Connector: Female DB-9, compatible with IBM PC AT serial port
Maximum Power: Section Power: Dependent on frequency and connector
Measurement Range: 2.5 to 100 W, Contact factory to inquire about other power
measurement ranges
Operating Temp.: 0?C to 50?C
Passive Intermod Products: Less than -130 dBc
Power Requirements: +11 to +26 VDC or ?36 to ?72 VDC
Protocol: Serial RS-232, 9600 baud, no parity, 8 data bits, 1 stop bit, no handshake
Relay Contact Type: Dry, Form C, relay contacts, common, normally open, normally closed
Reset: Local Mechanical reset switch, Remote input (Reset if VDC is 0 to +0.8 volts)
RF Connector: N or 7/16 DIN, see ACM Part Number Definition in the "Support Tools"
section on this webpage
Safety: European Standard EN 61010-1:2001 - Safety Requirements - Electrical equip. for
measurement, control and laboratory use - ECM Requirements
Stimulus: VSWR set point exceeded, response time proportional to overload
Storage Temperature: -4?F to 176?F (-20?C to 80?C)
Visual: Visual Alarm- Red LED will illuminate to indicate alarm
VSWR: 1.07, 136 to 960 MHz; 1.1, 960 to 2400 MHz, N Connectors; 1.1, 960 to 2000 MHz, 7/16
Connectors; 1.2, 2000 to 2400 MHz, 7/16 Connectors
Weight: Less than 2 lbs. (0.9 kg)
